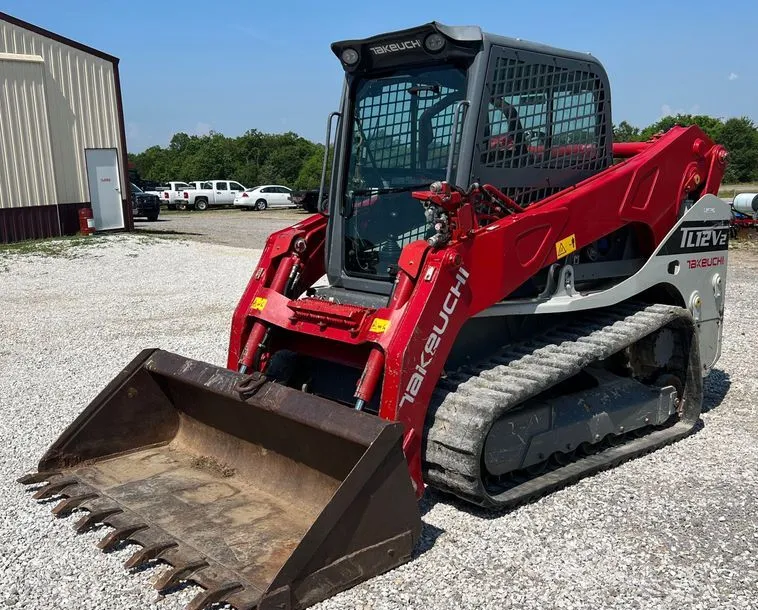

2016 Takeuchi TL12V2 Tracked Skid Steer Loader
531 Hours | Kubota V3800-CR-TI-EV03 3.8L 4-Cylinder Turbodiesel | Hydrostatic Transmission | Fuel Type: Diesel | Drive Type: Tracked | Serial: 412000485
This 2016 Takeuchi TL12V2 tracked skid steer loader, with 531 hours on the meter, is powered by a Kubota V3800-CR-TI-EV03 3.8L 4-cylinder turbodiesel engine, delivering 110 horsepower (81.8 kW) at 2,400 RPM and 284 lb-ft of torque at 1,500 RPM. It features a hydrostatic transmission with two-speed travel, offering speeds of…
2016 Takeuchi TL12V2 Tracked Skid Steer Loader
531 Hours | Kubota V3800-CR-TI-EV03 3.8L 4-Cylinder Turbodiesel | Hydrostatic Transmission | Fuel Type: Diesel | Drive Type: Tracked | Serial: 412000485
This 2016 Takeuchi TL12V2 tracked skid steer loader, with 531 hours on the meter, is powered by a Kubota V3800-CR-TI-EV03 3.8L 4-cylinder turbodiesel engine, delivering 110 horsepower (81.8 kW) at 2,400 RPM and 284 lb-ft of torque at 1,500 RPM. It features a hydrostatic transmission with two-speed travel, offering speeds of 5.0 mph (low) and 7.3 mph (high) for efficient operation. Identified by serial 412000485, this vertical lift loader is designed for heavy-duty construction, landscaping, and material handling tasks, combining robust performance with operator comfort.
The machine is equipped with an 80-inch wide bucket featuring a weld-on cutting edge and weld-on teeth, providing a rated operating capacity of 4,107 lb (at 35% tipping load) and a bucket breakout force of 7,874 lb. It includes a hydraulic quick coupler for rapid attachment changes, auxiliary hydraulics with a primary flow of 23.2 gpm (optional high-flow at 40.4 gpm), and an auxiliary electrical outlet for powering additional tools. The 17.5-inch wide rubber tracks with a quiet ride design and flotation pads ensure low ground pressure (4.8 psi), reducing vibration and surface damage while enhancing traction. The enclosed cab offers air conditioning, heat, hand-operated bucket controls, and an Electronic Monitoring System panel with a 5.7-inch color multi-informational display for real-time diagnostics and performance tracking.
Technical Details and Additional Features: The TL12V2 features a vertical lift arm design, providing a maximum lift height to bucket pin of 10 feet 10 inches and a dump height of 8 feet 1 inch, ideal for loading high-sided trucks. The hydraulic system operates at 3,481 psi, with a 13.2-gallon reservoir and 20.6-gallon total capacity, supporting proportional auxiliary controls with detent and hydraulic self-leveling (on/off). The Tier 4 Final-compliant engine uses a DOC+DPF+SCR exhaust after-treatment system with a 4.8-gallon DEF tank, ensuring emissions compliance without compromising power. The machine includes Active Power Control for optimized power delivery, selectable Power and ECO modes, and a dial throttle control. The electrical system is 12-volt with an 80-amp alternator, powering LED work lights, a backup alarm, and a horn. The undercarriage features permanently sealed track rollers with metal face seals and double-reduction planetary drives for durability. The cab, with a ROPS/FOPS structure, includes a deluxe high-back adjustable suspension seat, a retractable 2-inch seat belt (optional 3-point), and a rear-pivoting seat bar with armrests. Additional features include a low-effort overhead door, a pressurized cab with a roll-up door, front/rear wipers, and an AM/FM/MP3 radio. The machine’s operating weight is 13,190 lb (cab), with a tipping load of 11,737 lb and a traction force of 14,006 lb. The 32.7-gallon fuel tank supports approximately 8-10 hours of operation at 3.8 gal/hr (65% load), and maintenance is simplified with side-by-side radiator, hydraulic oil cooler, and intercooler on a swing-out frame, plus ground-level access to filters and fluids.
The loader was professionally inspected in 2025, confirming its excellent condition with exceptionally low hours for its age, ideal for grading, lifting, or moving heavy materials. Maintenance records indicate recent servicing of the engine, hydraulics, and tracks, with no reported issues.
This Takeuchi TL12V2 tracked skid steer loader is an extremely nice, low-hour machine, featuring a powerful 110 HP Kubota turbodiesel engine, a versatile 80-inch bucket with hydraulic quick coupler, and a comfortable cab with advanced monitoring, making it an ideal choice for contractors, landscapers, or operators needing a high-performance, reliable loader for demanding construction or material handling tasks.
—————————-
